Initial Conditions for Gadget-4 Simulations

In this example, we’ll use Pisces to generate a galaxy cluster merger model and export it as initial conditions for a Gadget-4 simulation.

We will:

1. Construct two simple spherical galaxy cluster models.

2. Arrange them on a collision trajectory.

3. Convert these models into Gadget-4–compatible particle data.

This tutorial illustrates how analytical models in Pisces can be transformed into realistic, particle-based initial conditions for large-scale hydrodynamic simulations.

Setup

Import the required modules. We’ll use the SphericalGalaxyClusterModel to construct equilibrium cluster models and the Gadget4Frontend to export them into Gadget-4 format.

import tempfile

import matplotlib.pyplot as plt
import numpy as np
import unyt

from pisces.extensions.simulation import gadget, initial_conditions
from pisces.models.galaxy_clusters import SphericalGalaxyClusterModel
from pisces.particles import Gadget4ParticleDataset
from pisces.profiles import NFWDensityProfile

Density Profiles

We define Navarro–Frenk–White (NFW) profiles for both the total matter and gas components of a single galaxy cluster.

These parameters correspond to a modest-mass cluster and will be used to define the equilibrium structure for each model.

rho_tot = unyt.unyt_quantity(5e6, "Msun/kpc**3")  # Total density normalization
r_s_tot = unyt.unyt_quantity(200, "kpc")  # Total scale radius

rho_gas = unyt.unyt_quantity(5e5, "Msun/kpc**3")  # Gas density normalization
r_s_gas = unyt.unyt_quantity(220, "kpc")  # Gas scale radius

# Create the NFW profiles
total_density = NFWDensityProfile(rho_0=rho_tot, r_s=r_s_tot)
gas_density = NFWDensityProfile(rho_0=rho_gas, r_s=r_s_gas)

Cluster Model Construction

Using these profiles, we now build a self-consistent spherical cluster model defined on a logarithmic radial grid.

The SphericalGalaxyClusterModel automatically computes the hydrostatic equilibrium structure (gas pressure, mass, potential, etc.) from the provided density fields.

tmpdir = tempfile.TemporaryDirectory()
filename = f"{tmpdir.name}/cluster_model.h5"

rmin = unyt.unyt_quantity(1.0, "kpc")
rmax = unyt.unyt_quantity(3.0, "Mpc")

model = SphericalGalaxyClusterModel.from_density_and_total_density(
    gas_density,
    total_density,
    filename,
    min_radius=rmin,
    max_radius=rmax,
    num_points=500,
    overwrite=True,
)

Preparing metadata...:   0%|          | 0/7 [00:00<?, ?it/s]
Generating grid...:  14%|█▍        | 1/7 [00:00<00:00, 119837.26it/s]
Building density...:  29%|██▊       | 2/7 [00:00<00:00, 2264.13it/s]
Computing masses...:  43%|████▎     | 3/7 [00:00<00:00, 2253.79it/s]
Calculating potential...:  57%|█████▋    | 4/7 [00:00<00:00, 238.87it/s]
Calculating potential...:  71%|███████▏  | 5/7 [00:00<00:00, 17.52it/s]
Calculating temperature...:  71%|███████▏  | 5/7 [00:00<00:00, 17.52it/s]
Performing additional computations...:  86%|████████▌ | 6/7 [00:08<00:00, 17.52it/s]
COMPLETE:  86%|████████▌ | 6/7 [00:08<00:00, 17.52it/s]
COMPLETE: 100%|██████████| 7/7 [00:08<00:00,  1.56s/it]

Merger Setup

To create an idealized cluster merger, we position two identical clusters in a 15 Mpc simulation box, moving toward each other at ±1000 km/s.

Each model is offset by \(3\) Mpc along the x-axis, with the box center at (7.5, 7.5, 7.5) Mpc.

models = [
    {
        "model_name": "cluster_1",
        "model": model,
        "position": unyt.unyt_array([3.0, 7.5, 7.5], "Mpc"),
        "velocity": unyt.unyt_array([1000.0, 0.0, 0.0], "km/s"),
    },
    {
        "model_name": "cluster_2",
        "model": model,
        "position": unyt.unyt_array([12.0, 7.5, 7.5], "Mpc"),
        "velocity": unyt.unyt_array([-1000.0, 0.0, 0.0], "km/s"),
    },
]

ic_dir = f"{tmpdir.name}/ics"
ics = initial_conditions.InitialConditions3DCartesian.create_ics(ic_dir, *models)

/tmp/tmp7x3k3_p0/ics/cluster_1.h5
/tmp/tmp7x3k3_p0/ics/cluster_2.h5

Gadget-4 Frontend

The Gadget-4 frontend manages the conversion between the Pisces IC structure and the format expected by Gadget-4.

This includes unit conversion, particle type mapping, and configuration generation.

frontend = gadget.frontends.Gadget4Frontend(ics, overwrite=True)
frontend.config["parameters.boxsize"] = unyt.unyt_quantity(15.0, "Mpc")

Sampling into Particles

Gadget-4 evolves particles, not continuous profiles. Here we sample each cluster into discrete gas and dark matter particles with appropriate mass and velocity distributions.

ics.generate_particles(
    "cluster_1",
    num_particles={"dark_matter": 100_000, "gas": 50_000},
    overwrite=True,
)
ics.generate_particles(
    "cluster_2",
    num_particles={"dark_matter": 100_000, "gas": 50_000},
    overwrite=True,
)

Generating particles:   0%|          | 0/2 [00:00<?, ?species/s]

Generating 100000 dark_matter particles...

Generating particles:   0%|          | 0/2 [00:00<?, ?species/s]

Interpolating dark_matter fields:   0%|          | 0/3 [00:00<?, ?fields/s]



DF for 'dark_matter' not found, attempting to compute it...

Generating particles:   0%|          | 0/2 [00:00<?, ?species/s]

Generating particle velocities...:   0%|          | 0/100000 [00:00<?, ?it/s]

Generating particle velocities...:   5%|▌         | 5083/100000 [00:00<00:01, 50827.38it/s]

Generating particle velocities...:  10%|█         | 10215/100000 [00:00<00:01, 51112.74it/s]

Generating particle velocities...:  15%|█▌        | 15390/100000 [00:00<00:01, 51399.53it/s]

Generating particle velocities...:  21%|██        | 20571/100000 [00:00<00:01, 51561.30it/s]

Generating particle velocities...:  26%|██▌       | 25750/100000 [00:00<00:01, 51640.98it/s]

Generating particle velocities...:  31%|███       | 30949/100000 [00:00<00:01, 51757.85it/s]

Generating particle velocities...:  36%|███▌      | 36169/100000 [00:00<00:01, 51899.50it/s]

Generating particle velocities...:  41%|████▏     | 41385/100000 [00:00<00:01, 51982.04it/s]

Generating particle velocities...:  47%|████▋     | 46621/100000 [00:00<00:01, 52098.65it/s]

Generating particle velocities...:  52%|█████▏    | 51842/100000 [00:01<00:00, 52132.69it/s]

Generating particle velocities...:  57%|█████▋    | 57058/100000 [00:01<00:00, 52139.20it/s]

Generating particle velocities...:  62%|██████▏   | 62293/100000 [00:01<00:00, 52201.79it/s]

Generating particle velocities...:  68%|██████▊   | 67514/100000 [00:01<00:00, 52183.11it/s]

Generating particle velocities...:  73%|███████▎  | 72733/100000 [00:01<00:00, 52182.05it/s]

Generating particle velocities...:  78%|███████▊  | 77970/100000 [00:01<00:00, 52238.18it/s]

Generating particle velocities...:  83%|████████▎ | 83202/100000 [00:01<00:00, 52260.00it/s]

Generating particle velocities...:  88%|████████▊ | 88429/100000 [00:01<00:00, 52259.17it/s]

Generating particle velocities...:  94%|█████████▎| 93655/100000 [00:01<00:00, 52256.18it/s]

Generating particle velocities...:  99%|█████████▉| 98882/100000 [00:01<00:00, 52258.51it/s]


Generating particles:  50%|█████     | 1/2 [00:02<00:02,  2.58s/species]

Generating 50000 gas particles...

Generating particles:  50%|█████     | 1/2 [00:02<00:02,  2.58s/species]

Interpolating gas fields:   0%|          | 0/8 [00:00<?, ?fields/s]


Generating particles: 100%|██████████| 2/2 [00:02<00:00,  1.32s/species]

Generating particles:   0%|          | 0/2 [00:00<?, ?species/s]

Generating 100000 dark_matter particles...

Generating particles:   0%|          | 0/2 [00:00<?, ?species/s]

Interpolating dark_matter fields:   0%|          | 0/3 [00:00<?, ?fields/s]



DF for 'dark_matter' not found, attempting to compute it...

Generating particles:   0%|          | 0/2 [00:00<?, ?species/s]

Generating particle velocities...:   0%|          | 0/100000 [00:00<?, ?it/s]

Generating particle velocities...:   5%|▌         | 5094/100000 [00:00<00:01, 50938.23it/s]

Generating particle velocities...:  10%|█         | 10237/100000 [00:00<00:01, 51222.43it/s]

Generating particle velocities...:  15%|█▌        | 15360/100000 [00:00<00:01, 51222.40it/s]

Generating particle velocities...:  21%|██        | 20547/100000 [00:00<00:01, 51474.72it/s]

Generating particle velocities...:  26%|██▌       | 25695/100000 [00:00<00:01, 51472.70it/s]

Generating particle velocities...:  31%|███       | 30868/100000 [00:00<00:01, 51557.35it/s]

Generating particle velocities...:  36%|███▌      | 36027/100000 [00:00<00:01, 51566.35it/s]

Generating particle velocities...:  41%|████      | 41184/100000 [00:00<00:01, 51027.75it/s]

Generating particle velocities...:  46%|████▋     | 46346/100000 [00:00<00:01, 51209.22it/s]

Generating particle velocities...:  52%|█████▏    | 51507/100000 [00:01<00:00, 51330.72it/s]

Generating particle velocities...:  57%|█████▋    | 56660/100000 [00:01<00:00, 51390.46it/s]

Generating particle velocities...:  62%|██████▏   | 61833/100000 [00:01<00:00, 51492.73it/s]

Generating particle velocities...:  67%|██████▋   | 67017/100000 [00:01<00:00, 51594.89it/s]

Generating particle velocities...:  72%|███████▏  | 72218/100000 [00:01<00:00, 51719.09it/s]

Generating particle velocities...:  77%|███████▋  | 77423/100000 [00:01<00:00, 51816.05it/s]

Generating particle velocities...:  83%|████████▎ | 82633/100000 [00:01<00:00, 51899.21it/s]

Generating particle velocities...:  88%|████████▊ | 87833/100000 [00:01<00:00, 51927.65it/s]

Generating particle velocities...:  93%|█████████▎| 93026/100000 [00:01<00:00, 51889.69it/s]

Generating particle velocities...:  98%|█████████▊| 98229/100000 [00:01<00:00, 51931.59it/s]


Generating particles:  50%|█████     | 1/2 [00:02<00:02,  2.59s/species]

Generating 50000 gas particles...

Generating particles:  50%|█████     | 1/2 [00:02<00:02,  2.59s/species]

Interpolating gas fields:   0%|          | 0/8 [00:00<?, ?fields/s]


Generating particles: 100%|██████████| 2/2 [00:02<00:00,  1.33s/species]

Generate Gadget-4 Initial Conditions

Finally, we export the combined particle data into a Gadget-4–compatible HDF5 file. This file can be directly supplied to Gadget-4 for simulation.

frontend.generate_initial_conditions("output.hdf5", overwrite=True)

Visualization

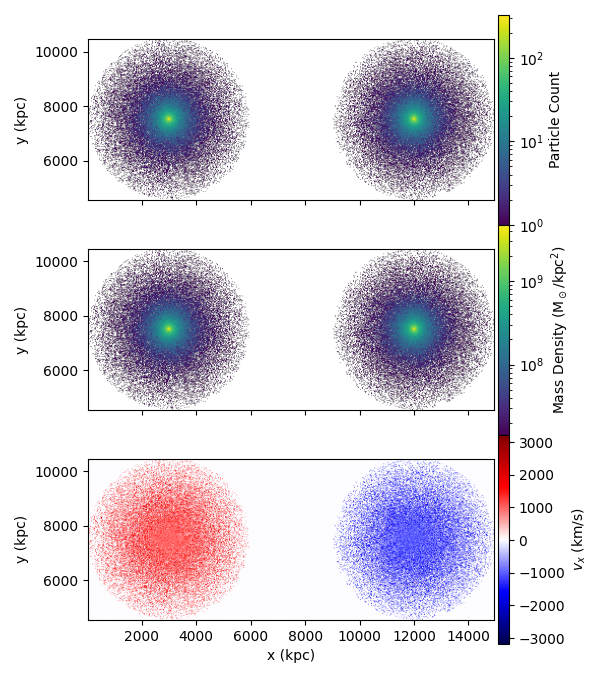

To verify the results, we can inspect the resulting Gadget4ParticleDataset and visualize the spatial distribution and velocity field of dark matter particles.

The following plots show:

• Particle count (upper panel)

• Projected mass density (middle panel)

• Mean x-velocity field (lower panel)

ics_path = f"{tmpdir.name}/ics/output.hdf5"
particles = Gadget4ParticleDataset(ics_path)

coords = particles["ParticleType1.Coordinates"].to_value("kpc")
vels = particles["ParticleType1.Velocities"].to_value("km/s")
masses = particles["ParticleType1.Masses"].to_value("Msun")

# Build histograms in the x–y plane
chist, x_edges, y_edges = np.histogram2d(coords[:, 0], coords[:, 1], bins=400)
mhist, _, _ = np.histogram2d(coords[:, 0], coords[:, 1], bins=400, weights=masses)
vhist, _, _ = np.histogram2d(coords[:, 0], coords[:, 1], bins=400, weights=masses * vels[:, 0])

# Compute mass-weighted quantities
density_image = np.zeros_like(mhist)
velocity_image = np.zeros_like(mhist)
nonzero = chist > 0
density_image[nonzero] = mhist[nonzero] / (np.diff(x_edges)[0] * np.diff(y_edges)[0])
velocity_image[nonzero] = vhist[nonzero] / mhist[nonzero]

# Create figure with three vertically stacked panels
fig, axes = plt.subplots(3, 1, figsize=(6, 7), sharex=True, gridspec_kw={"hspace": 0.0})
extent = [x_edges[0], x_edges[-1], y_edges[0], y_edges[-1]]

# --- Particle Count ---
img0 = axes[0].imshow(chist.T, origin="lower", extent=extent, norm="log", cmap="viridis")
plt.colorbar(img0, ax=axes[0], fraction=0.045, pad=0.01, label="Particle Count")

# --- Mass Density ---
img1 = axes[1].imshow(density_image.T, origin="lower", extent=extent, norm="log", cmap="viridis")
plt.colorbar(img1, ax=axes[1], fraction=0.045, pad=0.01, label=r"Mass Density (M$_\odot$/kpc$^2$)")

# --- X-Velocity Field ---
img2 = axes[2].imshow(velocity_image.T, origin="lower", extent=extent, cmap="seismic")
plt.colorbar(img2, ax=axes[2], fraction=0.045, pad=0.01, label=r"$v_x$ (km/s)")

# --- Labels and layout ---
axes[-1].set_xlabel("x (kpc)")
for ax in axes:
    ax.set_ylabel("y (kpc)")
    ax.set_aspect("equal")

plt.tight_layout()
plt.show()
