Build a Spherical Galaxy Cluster

This example constructs a simple spherical galaxy cluster model using Pisces and visualizes its thermodynamic profiles, including temperature, entropy, and pressure.

Unlike magnetized models, this cluster assumes pure thermal pressure support. The model uses NFW profiles for both total and gas densities and solves for the hydrostatic temperature profile under spherical symmetry.

Setup

We begin by importing the required profiles and model class. This example uses:

• SphericalGalaxyClusterModel

• NFWDensityProfile

import tempfile

import matplotlib.pyplot as plt
import numpy as np
import unyt

from pisces.models.galaxy_clusters import SphericalGalaxyClusterModel
from pisces.profiles import NFWDensityProfile

Density Profiles

We’ll define NFW profiles for both the total matter and gas components.

# Define the central density and scale radius for total mass.
rho_tot = unyt.unyt_quantity(5e6, "Msun/kpc**3")
r_s_tot = unyt.unyt_quantity(200, "kpc")

# Define the central density and scale radius for gas.
rho_gas = unyt.unyt_quantity(5e5, "Msun/kpc**3")
r_s_gas = unyt.unyt_quantity(220, "kpc")

# Create the profiles
total_density = NFWDensityProfile(rho_0=rho_tot, r_s=r_s_tot)
gas_density = NFWDensityProfile(rho_0=rho_gas, r_s=r_s_gas)

Model Construction

We’ll construct the spherical galaxy cluster model over a logarithmic radial grid.

# Create a temporary output file
tmpdir = tempfile.TemporaryDirectory()
filename = f"{tmpdir.name}/basic_cluster_model.h5"

# Define the radial range
rmin = unyt.unyt_quantity(1.0, "kpc")
rmax = unyt.unyt_quantity(3.0, "Mpc")

# Build the model
model = SphericalGalaxyClusterModel.from_density_and_total_density(
    gas_density,
    total_density,
    filename,
    min_radius=rmin,
    max_radius=rmax,
    num_points=500,
    overwrite=True,
)

Preparing metadata...:   0%|          | 0/7 [00:00<?, ?it/s]
Generating grid...:  14%|█▍        | 1/7 [00:00<00:00, 99864.38it/s]
Building density...:  29%|██▊       | 2/7 [00:00<00:00, 1973.79it/s]
Computing masses...:  43%|████▎     | 3/7 [00:00<00:00, 1853.15it/s]
Calculating potential...:  57%|█████▋    | 4/7 [00:00<00:00, 210.15it/s]
Calculating potential...:  71%|███████▏  | 5/7 [00:00<00:00, 16.95it/s]
Calculating temperature...:  71%|███████▏  | 5/7 [00:00<00:00, 16.95it/s]
Performing additional computations...:  86%|████████▌ | 6/7 [00:08<00:00, 16.95it/s]
COMPLETE:  86%|████████▌ | 6/7 [00:08<00:00, 16.95it/s]
COMPLETE: 100%|██████████| 7/7 [00:08<00:00,  1.46s/it]

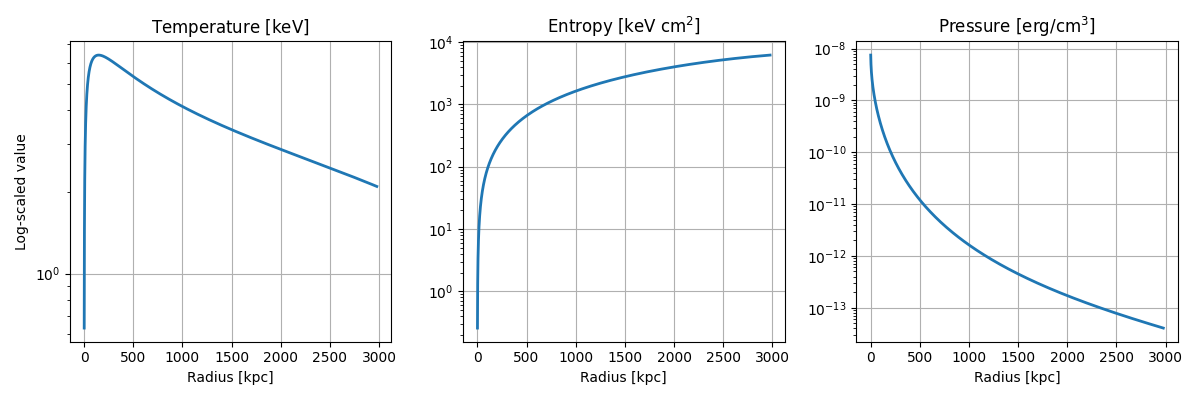

Plot Results

We’ll now extract and plot the thermodynamic quantities.

fields = ["temperature", "entropy", "pressure"]
labels = {
    "temperature": r"Temperature [$\mathrm{keV}$]",
    "entropy": r"Entropy [$\mathrm{keV\ cm^2}$]",
    "pressure": r"Pressure [$\mathrm{erg/cm^3}$]",
}
units = ["keV", "keV*cm**2", "erg/cm**3"]

fig, axes = plt.subplots(1, 3, figsize=(12, 4), sharex=True)
radii = model.grid["r"].to("kpc").value

for ax, field, unit in zip(axes, fields, units):
    ax.plot(radii, model[field].to_value(unit), lw=2)
    ax.set_yscale("log")
    ax.set_title(labels[field])
    ax.set_xlabel("Radius [kpc]")
    ax.grid(True)

axes[0].set_ylabel("Log-scaled value")
plt.tight_layout()
plt.show()
